Model Whirlpool N3357^0 – Common Parts & Diagrams
02 - MAIN TOP
03 - BLOWER

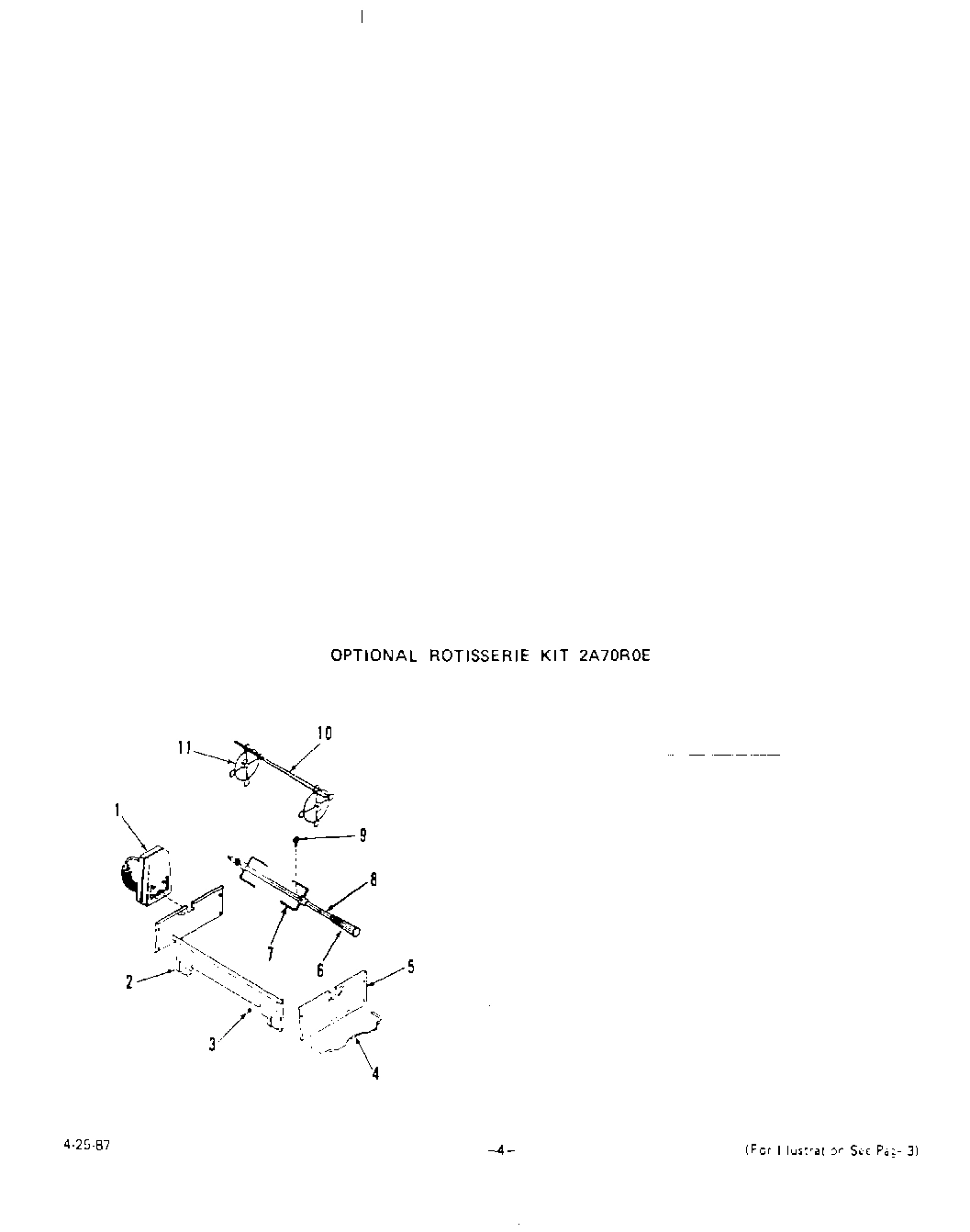

04 - ROTISSERIE

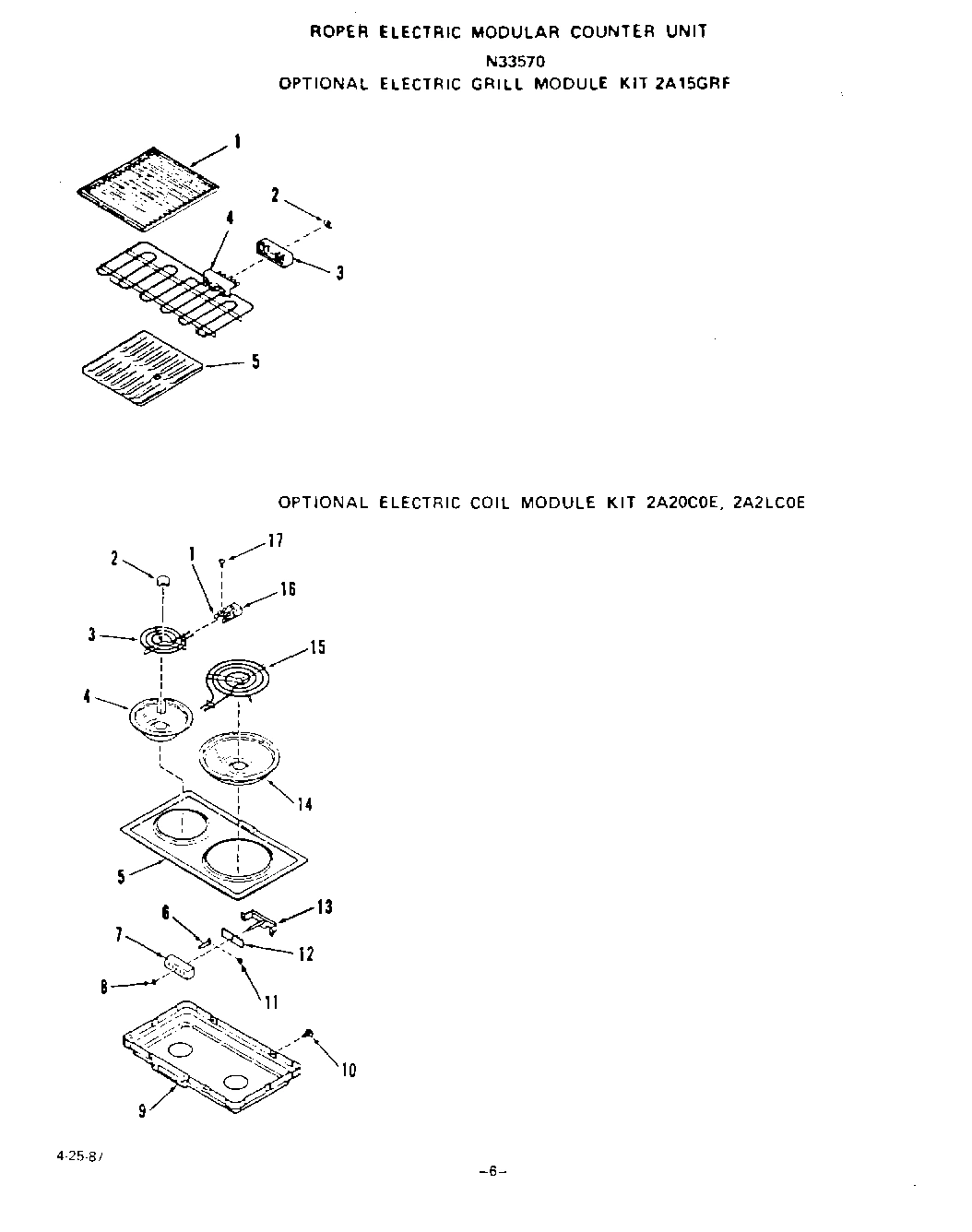

06 - ELECTRIC GRILL , ELECTRIC COIL

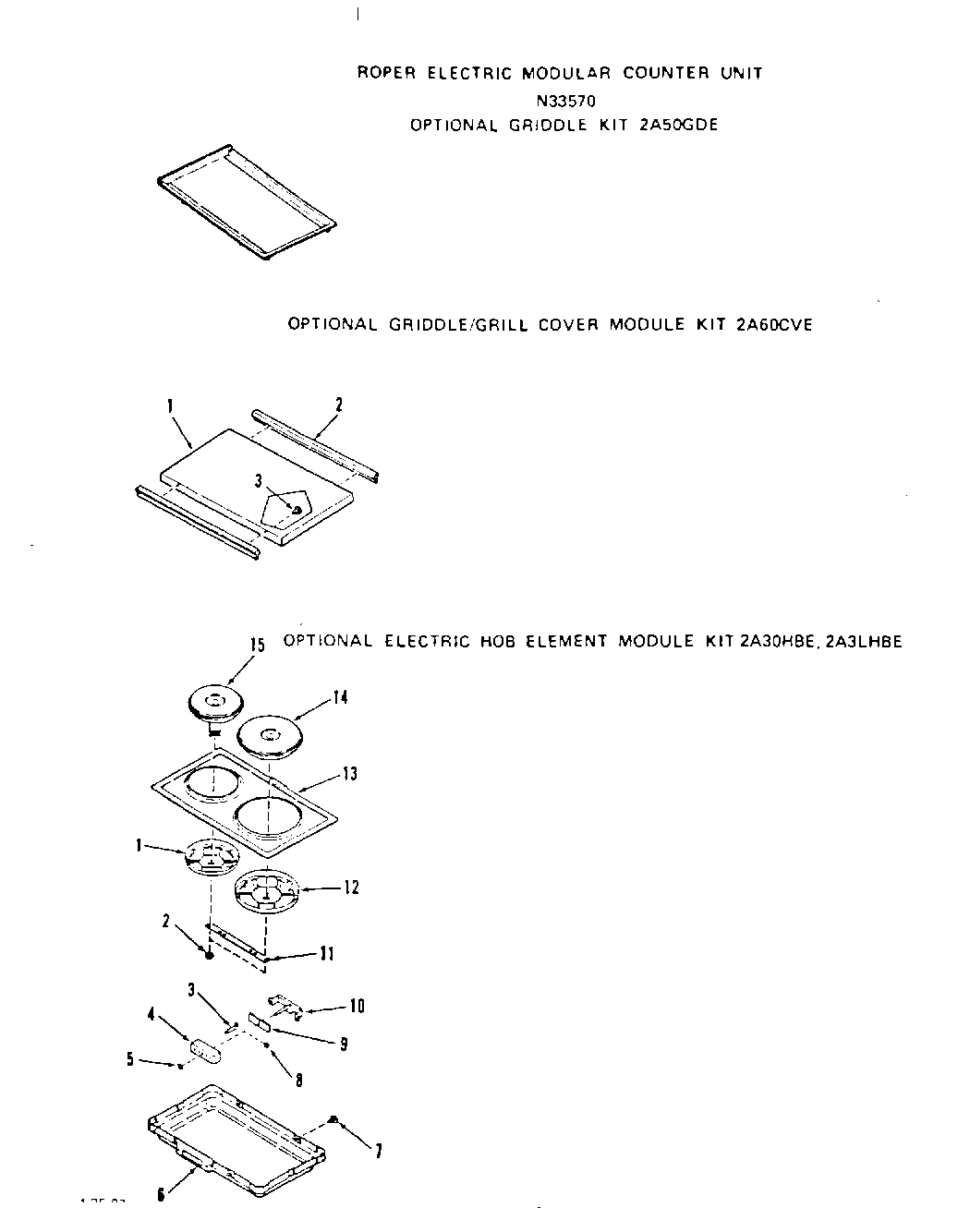

05 - GRIDDLE , GRIDDLE/GRILL COVER
07 - WIRING DIAGRAM
Common parts from model Whirlpool N3357^0
1
Clip-Terminal Block (2 Req) WPL 318872 Contact Us For Availability
1
Lock Nut WPL 330275 Contact Us For Availability
1
Motor WPL 332535 Contact Us For Availability
1
Grate-Grill (2 Req) WPL 331897 Contact Us For Availability
1
Clamp-Hob Element (Small) WPL 329109 Contact Us For Availability
1
Cover WPL 329281 Contact Us For Availability
1
Griddle WPL 330928 Contact Us For Availability
2
Element Grill WPL 334981 Contact Us For Availability
2
Clip-Push On WPL 330332 Contact Us For Availability
2
Medallion (2 Req) WPL 318586 Contact Us For Availability
2
Housing WPL 329644 Contact Us For Availability
2
Housing-Side WPL 332474 Contact Us For Availability
2
Handle-Rt. or Lt. WPL 329282 Contact Us For Availability
2
Mounting Nut (2 Req) WPL 329326 Contact Us For Availability
3
Terminal Block WPL 330310 Contact Us For Availability
3
6`` Surface Element WPL 325510 Contact Us For Availability
3
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
3
Nut-Push On WPL 330786 Contact Us For Availability
3
Terminal Pin (4 Req) WPL 310709 Contact Us For Availability
3
Screw 6ABx1/4`` WPL 330244 Contact Us For Availability
4
6`` Burner Bowl WPL 296481 Contact Us For Availability
4
Keps Nut 8-32 WPL 239764 Contact Us For Availability
4
Frame-End WPL 332480 Contact Us For Availability
4
Element-Grill WPL 333177 Contact Us For Availability
4
Terminal Block WPL 329024 Contact Us For Availability
5
Reflector-Grill Support (2 Req) WPL 332382 Contact Us For Availability
5
Gasket-Motor Seal WPL 330347 Contact Us For Availability
5
Housing-Front & Rear WPL 332476 Contact Us For Availability
5
Main Top (Chrome) WPL 329211 Contact Us For Availability
5
Main Top (Almond) WPL 330955 Contact Us For Availability
5
Speed Nut WPL 69831 Contact Us For Availability
6
Cap-Capacitor WPL 330260 Contact Us For Availability
6
Handle WPL 333188 Contact Us For Availability
6
Pan-Module WPL 331607 Contact Us For Availability
7
Capacitor WPL 329649 Contact Us For Availability
7
Skewer WPL 88420 Contact Us For Availability
7
Screw 8-32x3/8`` WPL 232183 Contact Us For Availability
8
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
8
Spit WPL 333187 Contact Us For Availability
9
Bracket-Capacitor WPL 330261 Contact Us For Availability
9
Thumbscrew WPL 70287 Contact Us For Availability
9
Pan-Module WPL 331609 Contact Us For Availability
9
Insulator WPL 310705 Contact Us For Availability
10
Air Intake-Grill (Rt. or Lt.) WPL 329021 Contact Us For Availability
10
Screw 8ABx1/4`` WPL 233583 Contact Us For Availability
10
Spit-Shish Kabob WPL 329711 Contact Us For Availability
10
Bracket-Terminal Block WPL 329112 Contact Us For Availability
11
Air Filter (Rt. or Lt.) WPL 329033 Contact Us For Availability
11
Shield-Motor WPL 329659 Contact Us For Availability
11
Support-Shish Kabob WPL 329710 Contact Us For Availability
11
Strap-Hob Element WPL 329240 Contact Us For Availability
12
Spacer WPL 325308 Contact Us For Availability
12
Clamp-Hob Element (Large) WPL 329108 Contact Us For Availability
13
Motor WPL 329646 Contact Us For Availability
13
Main Top (Chrome) WPL 329105 Contact Us For Availability
13
Main Top (Almond) WPL 330952 Contact Us For Availability
14
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
14
8`` Burner Bowl WPL 304969 Contact Us For Availability
14
Rubber Motor Mount WPL 329648 Contact Us For Availability
14
Element-Hob (Large) WPL 329107 Contact Us For Availability
15
Main Top (White) WPL 328759 Contact Us For Availability
15
Main Top (Almond) WPL 328760 Contact Us For Availability
15
Main Top (Platinum) WPL 328761 Contact Us For Availability
15
Main Top (Toast) WPL 328762 Contact Us For Availability
15
Main Top (Black) WPL 329044 Contact Us For Availability
15
8`` Surface Element WPL 325506 Contact Us For Availability
15
Plate-Motor Mount WPL 329647 Contact Us For Availability
15
Element-Hob (Small) WPL 329106 Contact Us For Availability
16
Terminal Block w/Wire Leads WPL 318960 Contact Us For Availability
16
Knob-Infinite Control (4 Req) WPL 330556 Contact Us For Availability
16
Seal-Motor WPL 330346 Contact Us For Availability
17
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
17
Impellor WPL 329645 Contact Us For Availability
18
Flexible Hose WPL 329031 Contact Us For Availability
19
Clamp-Hose WPL 329032 Contact Us For Availability
20
Cup-Knob (Lt. Rear) WPL 331540 Contact Us For Availability
20
Cup-Knob (Rt. Rear) WPL 331541 Contact Us For Availability
20
Cup-Knob (Lt. Front) WPL 331542 Contact Us For Availability
20
Cup-Knob (Rt. Front) WPL 331543 Contact Us For Availability
20
Discharge-Blower WPL 329030 Contact Us For Availability
21
Inlet Ring WPL 329643 Contact Us For Availability
22
Grease Well (Left) WPL 331926 Contact Us For Availability
22
Grease Well (Right) WPL 331928 Contact Us For Availability
22
Set Screw 24-5/16``x3/8`` WPL 330263 Contact Us For Availability
23
Terminal-Female WPL 333733 Contact Us For Availability
25
Terminal Block WPL 333732 Contact Us For Availability
26
Clamp-Terminal Block WPL 310693 Contact Us For Availability
28
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
29
End Cap (Left) WPL 328783 Contact Us For Availability
29
End Cap (Right) WPL 328784 Contact Us For Availability
30
Infinite Control (4 Req) WPL 331619 Contact Us For Availability
31
Seal-Infinite Control (4 Req) WPL 280157 Contact Us For Availability
32
Screw 8-32 x 3/8`` WPL 238833 Contact Us For Availability
33
Pal Nut WPL 78593 Contact Us For Availability
34
Mounting Tray-Switch (Rt. or Lt.) WPL 331875 Contact Us For Availability
35
Front Panel WPL 332628 Contact Us For Availability
36
Indicator Light WPL 327326 Contact Us For Availability
37
Speed Clip (2 Req) WPL 24710 Contact Us For Availability
38
Housing-Bottom & Sides WPL 333591 Contact Us For Availability
39
Insulation-Cabinet Bottom WPL 330186 Contact Us For Availability
40
Housing-Back & Front WPL 329000 Contact Us For Availability
41
Plenum-Blower WPL 329250 Contact Us For Availability
42
WPL 329013 WPL 329013 Contact Us For Availability
43
WPL 329034 WPL 329034 Contact Us For Availability
44
WPL 105771 WPL 105771 Contact Us For Availability
45
WPL 329010 WPL 329010 Contact Us For Availability
46
WPL 329019 WPL 329019 Contact Us For Availability
48
WPL 333725 WPL 333725 Contact Us For Availability
49
WPL 232365 WPL 232365 Contact Us For Availability
50
WPL 329382 WPL 329382 Contact Us For Availability
51
WPL 329016 WPL 329016 Contact Us For Availability
52
WPL 329465 WPL 329465 Contact Us For Availability
53
WPL 331038 WPL 331038 Contact Us For Availability
54
WPL 109266 WPL 109266 Contact Us For Availability
55
WPL 110340 WPL 110340 Contact Us For Availability
56
WPL 333487 WPL 333487 Contact Us For Availability
57
WPL 112062 WPL 112062 Contact Us For Availability
58
WPL 112061 WPL 112061 Contact Us For Availability
59
WPL 282634 WPL 282634 Contact Us For Availability
60
WPL 330289 WPL 330289 Contact Us For Availability
61
WPL 330117 WPL 330117 Contact Us For Availability
× ![]()
